Trying to connect a solar panel to a portable power station can be the most frustrating moment for a beginner off-grid camper. You buy a shiny new solar panel and a premium backup battery, set them up in the sun, and suddenly realize… the cables don’t match!
Because the industry lacks a universal standard, brands like EcoFlow, Jackery, and Renogy all use different input ports.
If you are wondering how to connect a solar panel to a portable power station without frying your expensive gear, you are in the right place.
In this 2026 adapter guide, we break down the three main connector types, how to mix and match brands, and the crucial voltage warning you must read before plugging anything in.

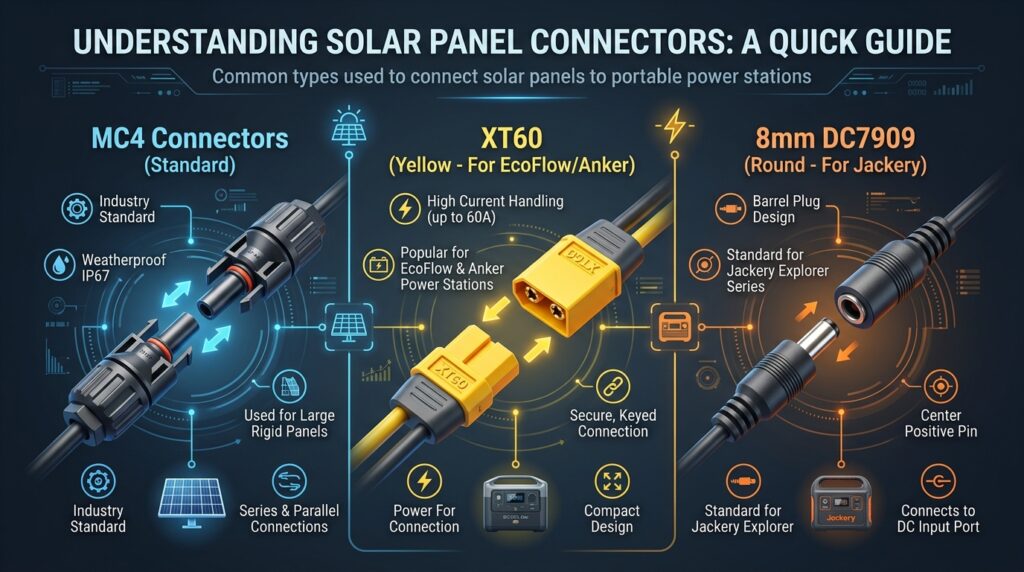

1. The Universal Standard: What is an MC4 Connector?
Before we look at the power stations, you must understand the solar panels.
Almost every rigid solar panel (and many high-end portable ones) comes with MC4 connectors.
- What they look like: Two thick wires. One has a hard plastic male tip (+), and the other has a female receptacle (-).
- Why they are used: They are heavily weather-sealed (waterproof) and lock together tightly, making them perfect for outdoor use.
The golden rule: If your solar panel has MC4 connectors, it is much easier to connect a solar panel to a portable power station from any brand.
2. Adapter Cheat Sheet: Match Your Brand
Here is exactly what adapter cable you need to buy to connect standard MC4 solar panels to the most popular power stations in 2026.
| Power Station Brand | Input Port Type | The Adapter Cable You Need to Buy |
| EcoFlow (RIVER / DELTA) | XT60 (Yellow) | MC4 to XT60 Cable |
| Jackery (Explorer Series) | 8mm / DC7909 (Round) | MC4 to 8mm (DC7909) Cable |
| BLUETTI (EB3A / AC180) | 8mm or XT60 | MC4 to 8mm OR MC4 to XT60 |
| Anker (Solix Series) | XT60 (Yellow) | MC4 to XT60 Cable |
Pro Tip: Need a high-quality solar panel that already includes the right cables? Check out our top-ranking guide: 5 Best Portable Solar Panels for Camping. (Note: This is the most important link in the article!)
3. How to Connect to EcoFlow (XT60)
EcoFlow uses the XT60 connector (it is yellow and rectangular with one flat edge). It is an excellent, highly efficient connector originally used in RC drones.
- The Fix: Buy an “MC4 to XT60 adapter.”
- How to Connect: Click the positive and negative MC4 ends of the solar panel into the adapter. Then, plug the yellow XT60 end into the back of your RIVER 2 or DELTA 2.
- Troubleshooting: If the screen shows 0 Watts when you connect a solar panel to a portable power station, your battery’s computer might have frozen. See our guide: EcoFlow Not Charging? 5 Common Fixes.
4. How to Connect to Jackery (8mm)
Jackery uses a circular barrel plug, officially known as the DC7909 (8mm) connector.
- The Fix: Buy an “MC4 to 8mm adapter.”
- The Benefit: Jackery’s proprietary SolarSaga panels already have this 8mm plug built-in. But if you want to use a cheaper third-party panel and connect a solar panel to a portable power station, this adapter is all you need.
5. How to connect a solar panel to a portable power station Safely
Knowing how to connect a solar panel to a portable power station physically is only step one. Step two is ensuring you don’t blow up the battery.
Every power station has a Maximum Solar Input Voltage limit.
- For example, the EcoFlow RIVER 2 has a maximum input limit of 30 Volts (30V).
- If you buy a massive 400W solar panel that outputs 45 Volts, and you connect it to the RIVER 2 using an adapter, the Battery Management System (BMS) will lock down, or the inverter will fry.
How to stay safe: Always check the sticker on the back of your solar panel for the “Voc” (Open Circuit Voltage). Make sure that number is lower than the Max Input Voltage listed in your power station’s manual.
Sizing Help: Not sure what size panel matches your battery? We did the math for you here: What Size Portable Power Station Do I Need?
Final Verdict
Don’t let mismatched cables stop you from going off-grid. By simply purchasing an MC4 to XT60 or MC4 to 8mm adapter cable (which usually costs under $20 on Amazon), you can connect almost any solar panel to any portable power station.
Just remember to check your voltage limits before connecting them!
FAQ
Q: Do I need a charge controller to connect a solar panel to a portable power station?
A: Yes. You do not need a separate “Charge Controller.” Modern portable power stations (from EcoFlow, Jackery, Bluetti) have MPPT charge controllers built inside them. Just plug the panel in directly.
Q: Does polarity matter? (Positive vs. Negative)
A: Absolutely. MC4 connectors are specifically designed so you cannot plug them in backward (male only fits female). However, if you are building your own adapter wires, crossing the positive and negative lines will damage your power station.
Q: What is an XT60i cable?
A: It is an upgraded version of the XT60 used by EcoFlow. It has a third middle pin that communicates with the battery to allow higher amperage (faster charging) from solar panels. A standard XT60 will still work, but might charge slightly slower.
